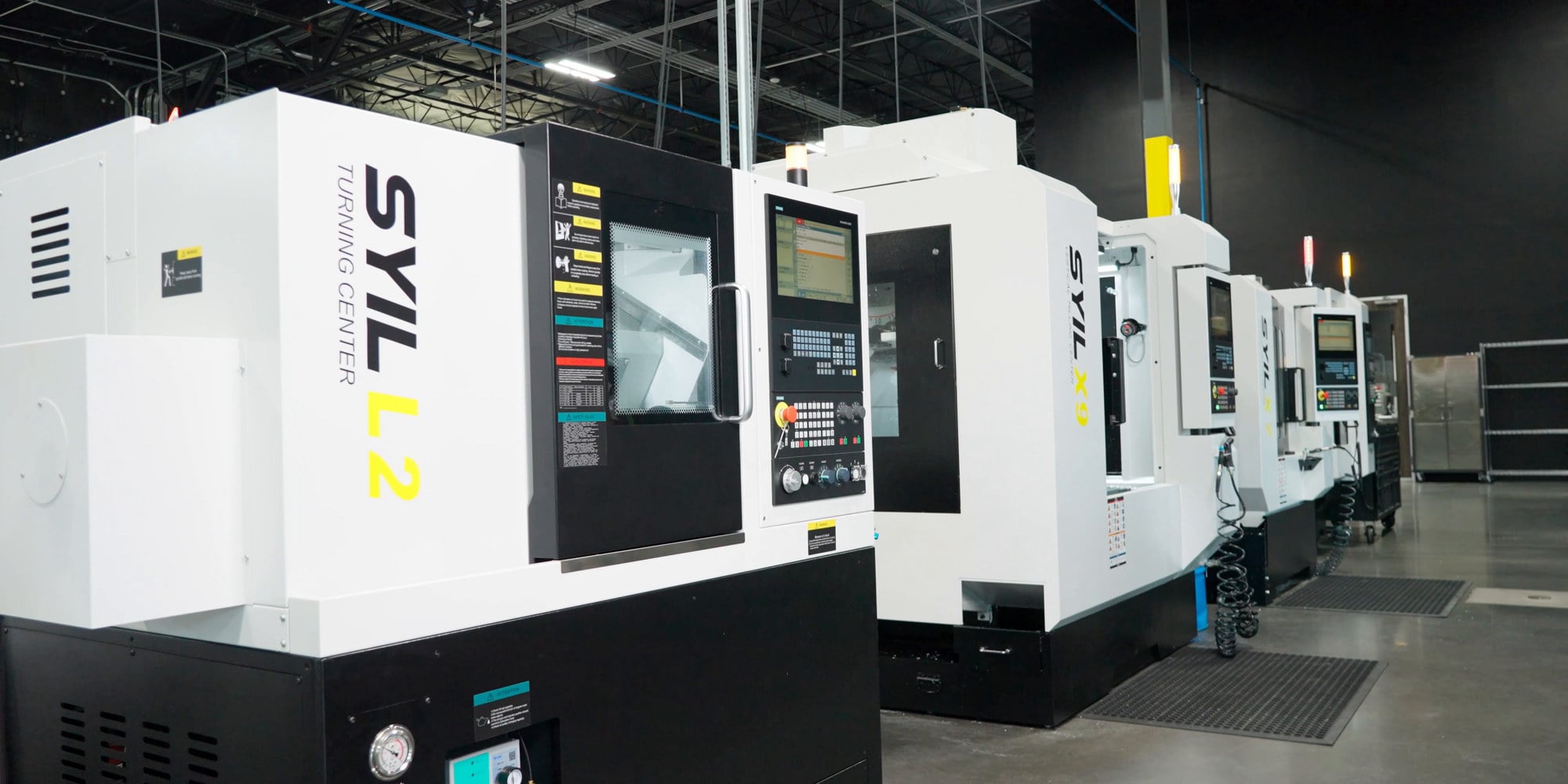

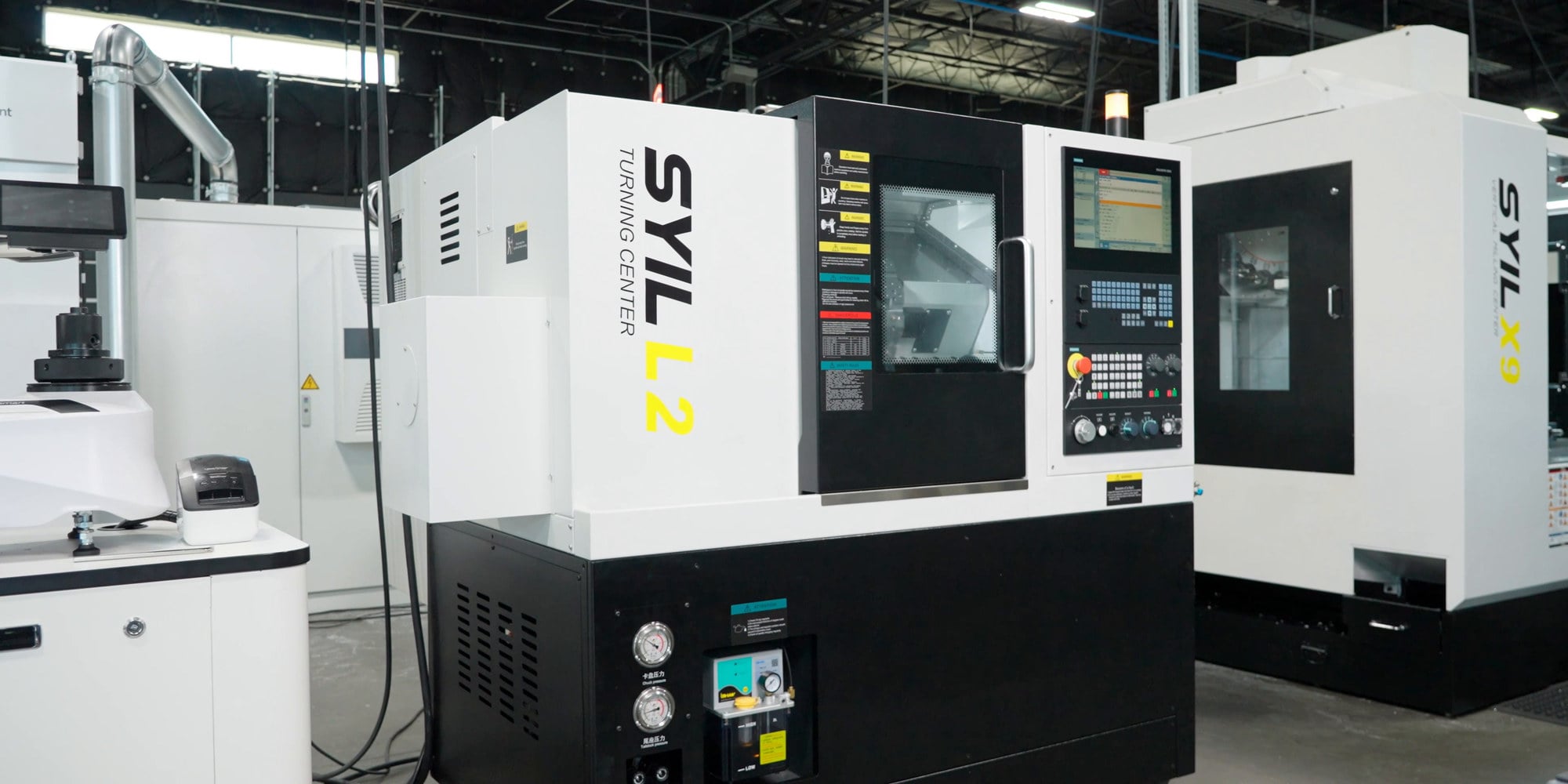

• SYIL L2 CNC Lathe

    SYIL L2 CNC Lathe

    The Turning Center for Your Shop

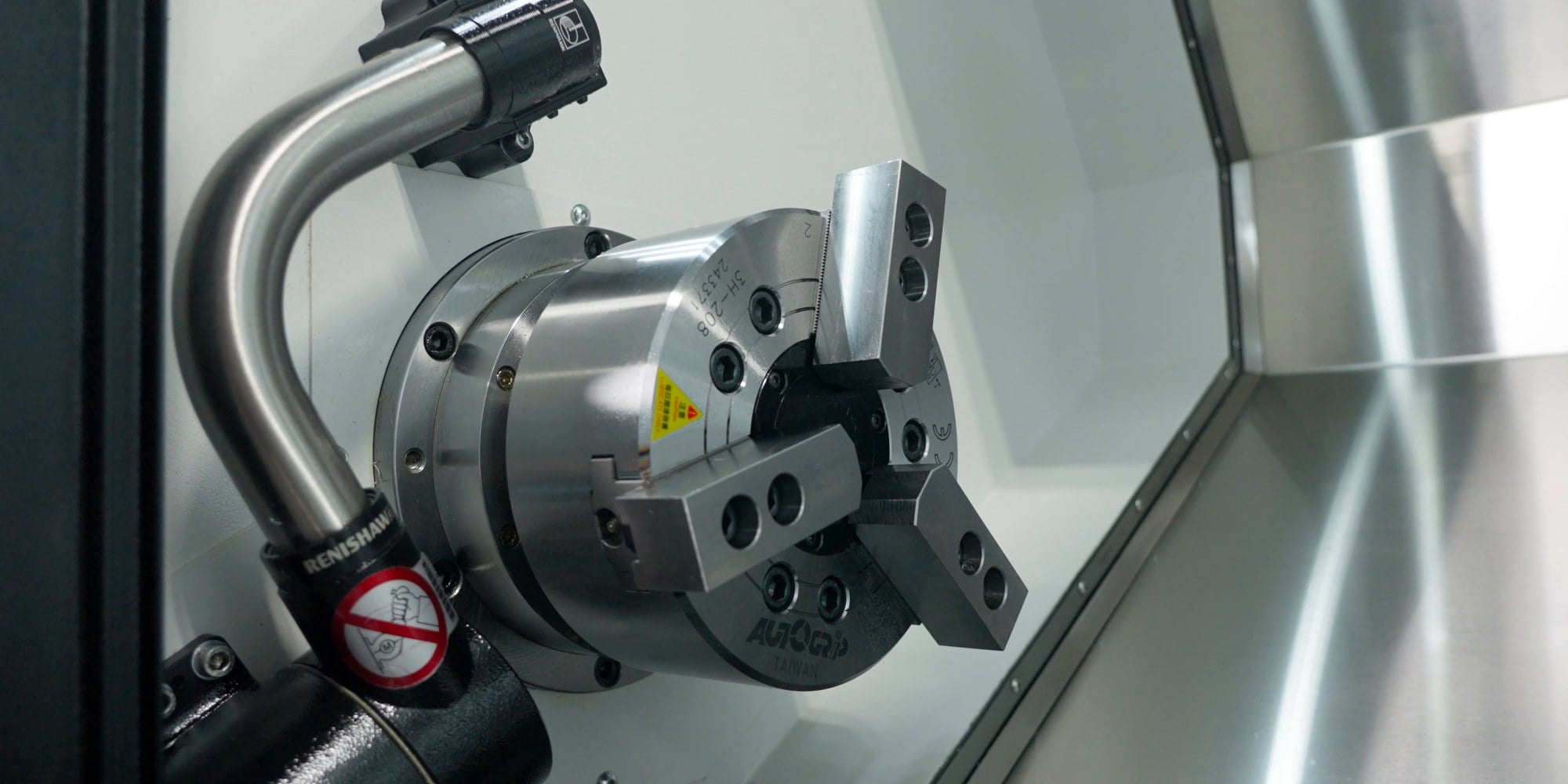

    8-inch hydraulic chuck

    Maximum turning diameter of ø510 mm

    Through-hole diameter of ø66 mm

    12/8-position servo tool turret

    Compact footprint



    From $28,990*

    (*excludes shipping & duties)

  • background image

  • SYIL L2 Turning Center Packages Specs

    When it comes to small parts manufacturing, precision and efficiency are essential. That's where SYIL CNC lathes come in. The SYIL L2 CNC lathes are designed to revolutionize turning centers and provide unmatched performance in small-scale production.

    Specifications

    Processing Capacity

    Chuck size: 8 inch
    Max. swing diameter over bed: ø510 mm
    Max. swing diameter over carriage: ø260 mm
    Max. workpiece Length: 300 mm
    Max. work piece diameter: ø380 mm



    Spindle

    Max speed: 4000 rpm
    Spindle nose: A2-6
    Spindle bore diameter: ø66 mm
    Through spindle bore diameter: ø52 mm
    Spindle power: 11/15 kW



    Tool Holder

    Type: Servo turret
    Tools: 8/12
    Tool shank size: 25x25/20x20 mm
    Tool shank diameter: ø40/ø32 mm



    Travels

    X Rapid traverse: 30 m/min
    Z Rapid traverse: 30 m/min
    X Travels: 200 mm
    Z Travels: 360 mm



    Accuracy

    Finish turning cylindrical accuracy: IT6
    Finish turning parts surface: Ra0.4-1.6
    Finished turning parts roundness: ≤0.003 mm
    Position accuracy (Ｘ): 0.005 mm
    Position accuracy (Ｚ): 0.008 mm
    Repeat accuracy (Ｘ): 0.002 mm
    Repeat accuracy (Ｚ): 0.004 mm



    Dimensions and Weight

    Dimensions(LxWxH): 1775x1600x1690 mm

    Weight.: 3050 kg

  • SYIL x Siemens

    The SYIL L2 is equipped with the Siemens SINUMERIK 828D control system as standard. With its unique CNC performance, the SINUMERIK 828D control sets productivity standards when it comes to milling on SYIL machines. With the new SINAMICS drives and SIMOTICS motion control motors, the SINUMERIK 828D is now even more productive. The robust hardware architecture and intelligent control algorithms, together with the high-quality drive and motor technology, ensure maximum dynamics and precision during machining.

  • Discover the Advantages of SYIL Lathes for Small Parts Manufacturing

    SYIL L2 adopts a platform-based and modular design, featuring a compact footprint and a comfortable operating space with expandability. It reserves interfaces for various expansion functions to realize automated processing, such as loading and unloading robots, automatic doors, automatic feeders, tool setters, online workpiece inspection, etc.

    Modular design with powerful expansion capabilities



    A compact machine layout; can be combined into a production line



    Optional mineral-cast bed structure



    High rigidity and thermal stability



    Direct drive servo system and high-precision guide rails



    Fully enclosed working area with stainless steel protective panels



    Easy chip removal design



    Ergonomic design for operation and loading/Unloading



    Easy access to each Unit for simple maintenance



    A customizable automation system can be added for expansion



  • broken image

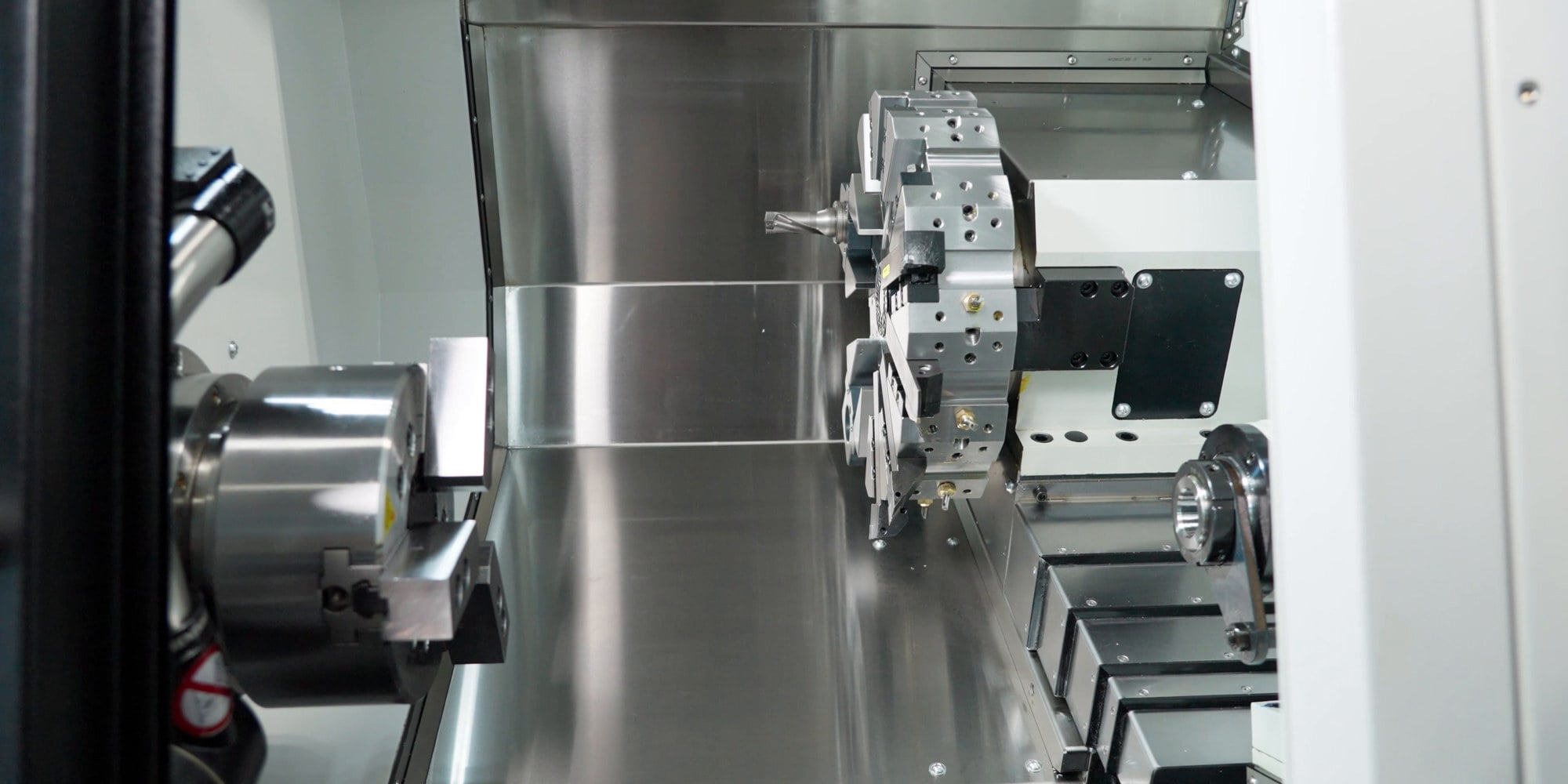

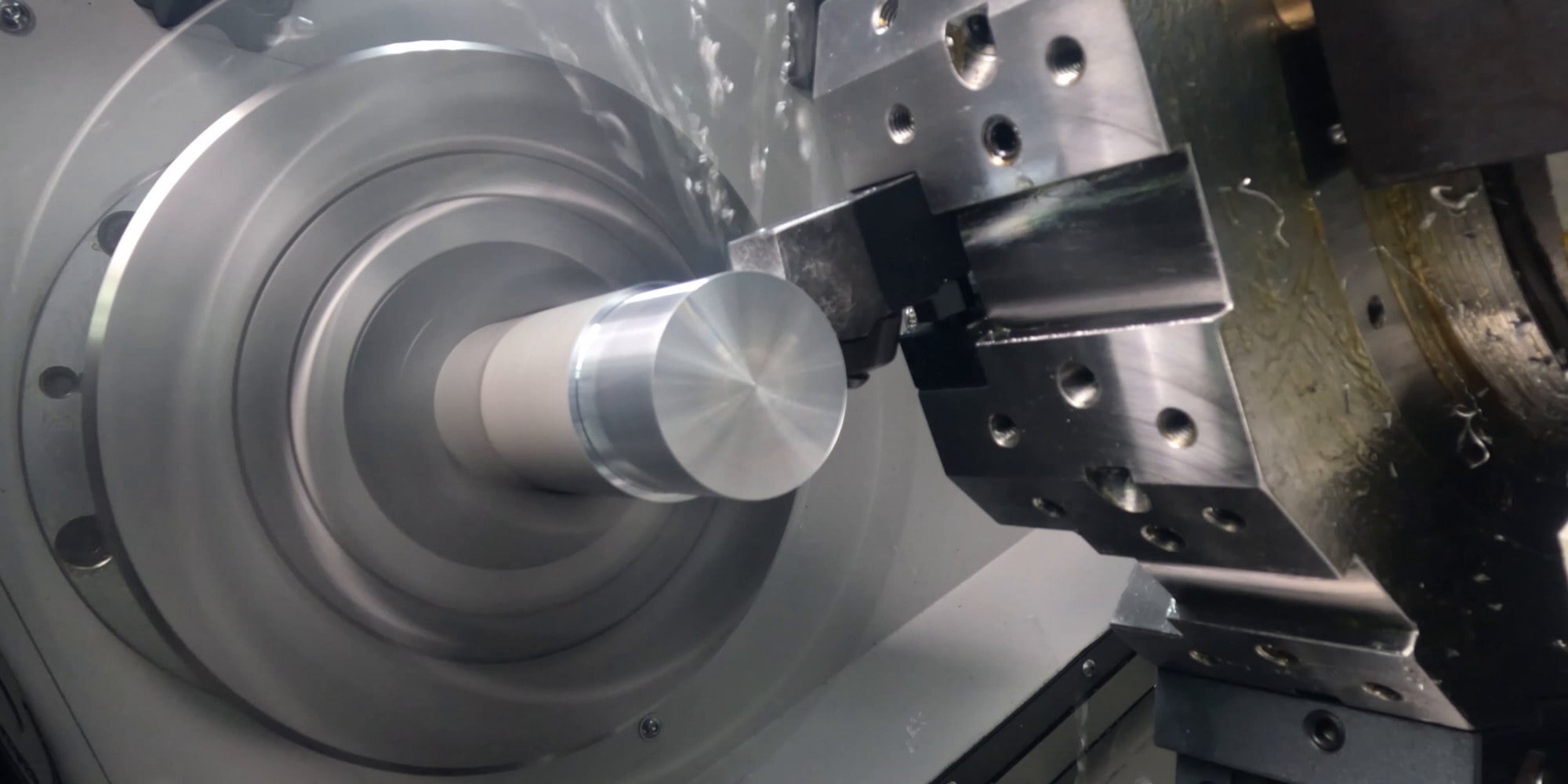

    High-Performance Turning

    With SYIL turning centers, you can expect superior accuracy and repeatability. The advanced CNC technology ensures that every cut is precise, resulting in consistent and high-quality parts. Whether you are prototyping or producing small metal parts in large quantities, SYIL lathes deliver exceptional results every time.

  • cnc lathe thk linear guides

    THK

    High-Precision Ball Screws and Linear Guides

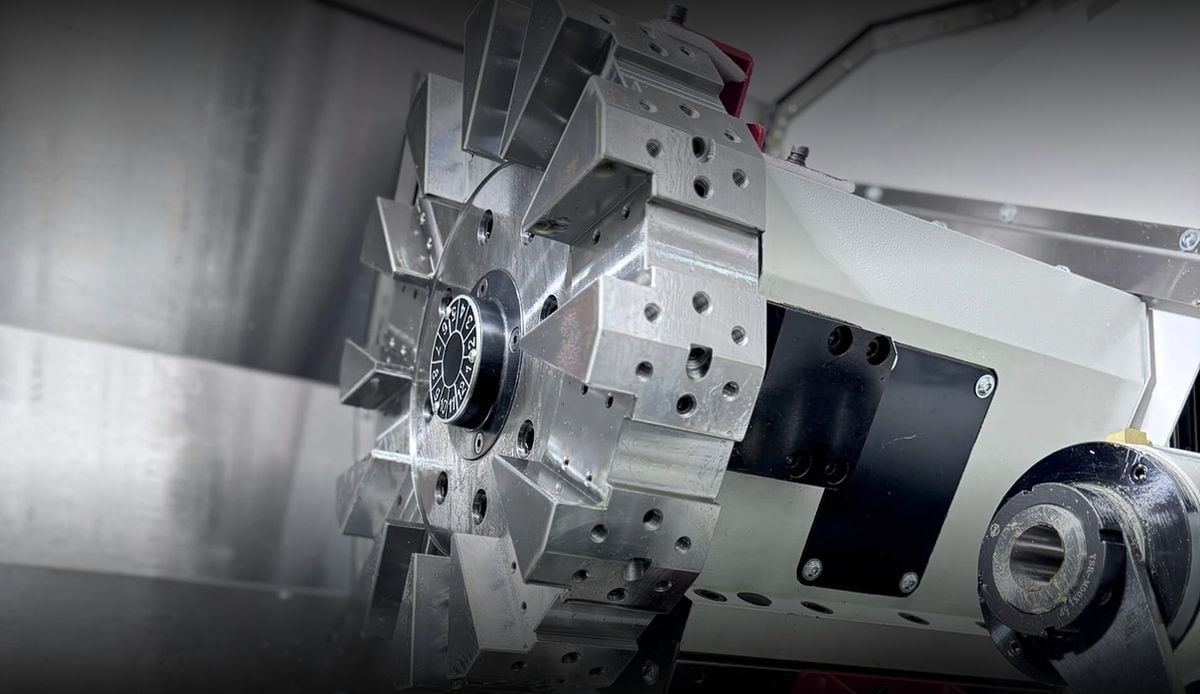

    cnc lathe tool turret

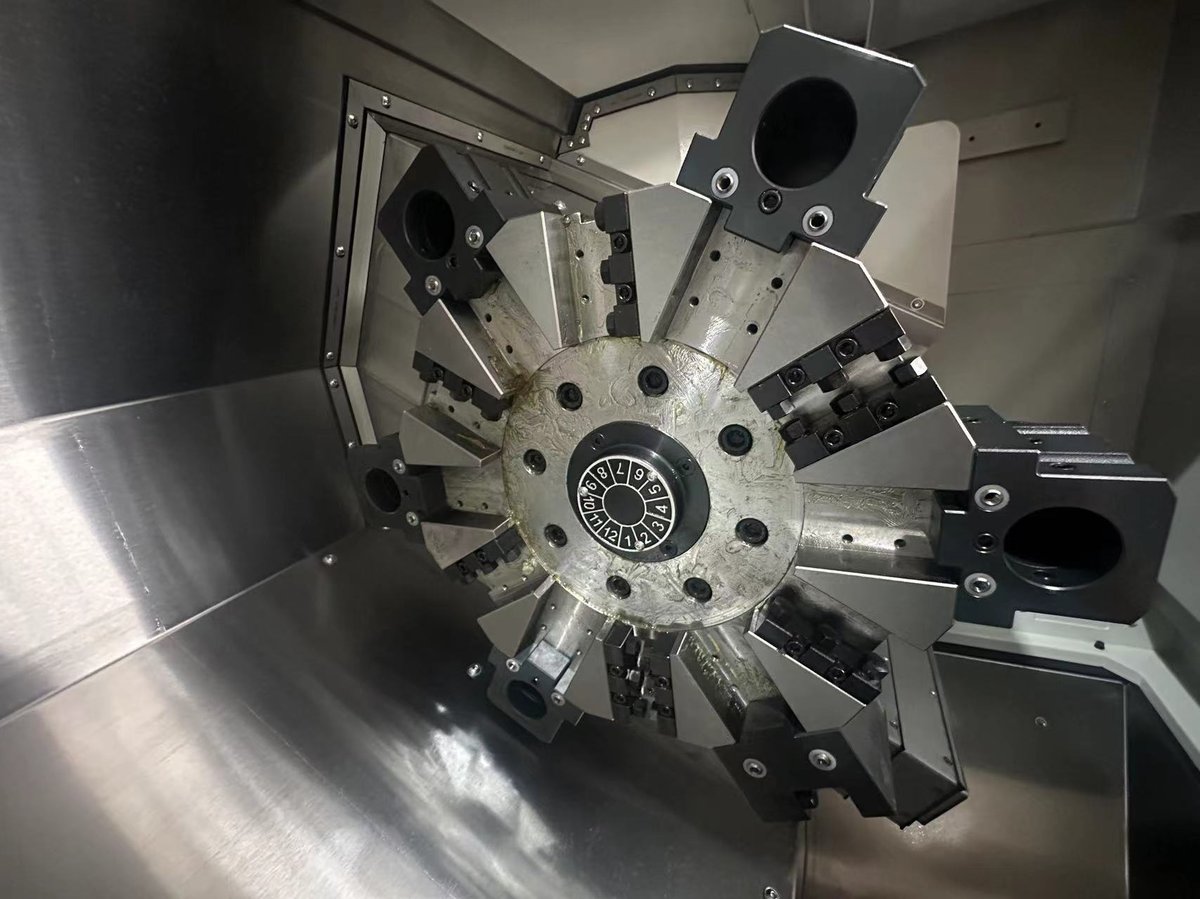

    8/12-Position Tool Turret System

    A durable Tool Turret can Withstand 70kg Coolant Pressure

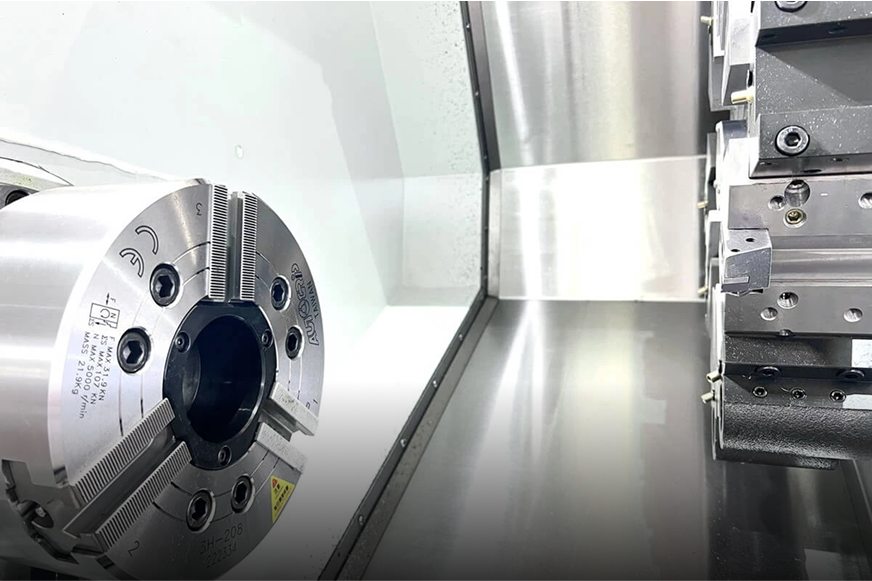

    cnc lathe spindle syil

    High-Speed Servo Spindle Unit

    Maximum Spindle Speed of 4000rpm

  • All About the SYIL L2

    What Types of Parts Can Be Machined on a SYIL CNC Lathe?

    A SYIL CNC lathe is capable of machining a wide range of parts. It is particularly well-suited for the production of small to medium-sized metal parts. The SYIL turning centers can handle a variety of materials, including steel, aluminum, brass, and titanium.



    With its high precision and accuracy, a SYIL CNC lathe can produce complex shapes, contours, and threads with ease. It is capable of performing various machining operations, such as facing, turning, grooving, threading, and drilling.



    SYIL CNC lathes are commonly used in industries such as automotive, aerospace, medical, and electronics. They are ideal for prototyping and small-batch production, allowing manufacturers to quickly and efficiently produce parts with tight tolerances.



    Whether you need to machine simple cylindrical components or intricate and intricate parts, a SYIL CNC lathe can deliver consistent and precise results. Its versatility, speed, and reliability make it a valuable asset in any CNC machining operation.

    How Does a SYIL CNC Lathe Increase Productivity?

    A SYIL CNC lathe increases productivity in several ways.

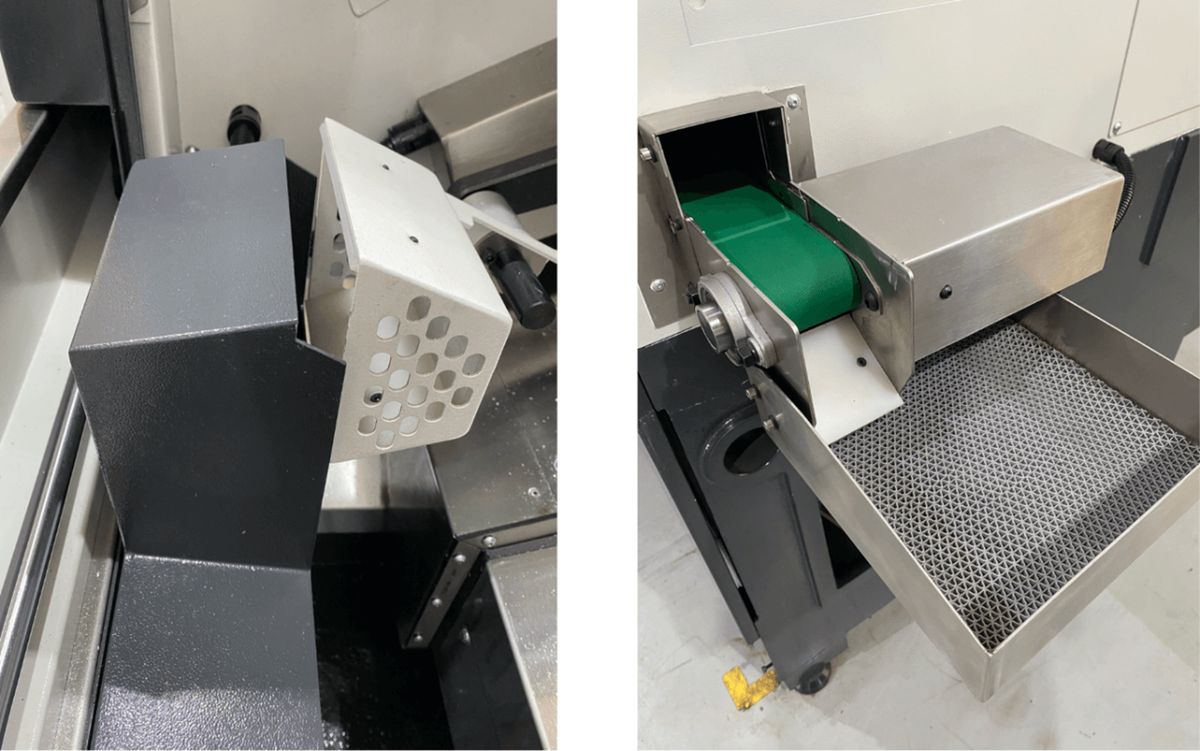

    Firstly, the SYIL CNC lathe is equipped with advanced automation features such as automatic tool changers, bar feeders, and parts catchers. These features allow for uninterrupted machining operations, reducing downtime and increasing overall efficiency.



    Secondly, the SYIL CNC lathe offers high-speed machining capabilities, allowing for faster cutting speeds and shorter cycle times. This results in increased production rates and faster turnaround times for parts manufacturing.



    Additionally, the SYIL CNC lathe is known for its user-friendly interface and intuitive programming software. This makes it easier for operators to set up and program the machine, reducing the learning curve and increasing productivity.



    Furthermore, the SYIL CNC lathe is built with a robust and rigid construction, ensuring high precision and accuracy in machining operations. This eliminates the need for rework or additional machining, saving time and increasing productivity.



    Lastly, SYIL CNC lathes are known for their reliability and durability. With minimal maintenance requirements and a reputation for long-lasting performance, these machines can consistently deliver high productivity over extended periods of time.



    Overall, the SYIL CNC lathe offers a combination of advanced features, high-speed capabilities, user-friendly interface, precision, and reliability, all of which contribute to increased productivity in the manufacturing process.
