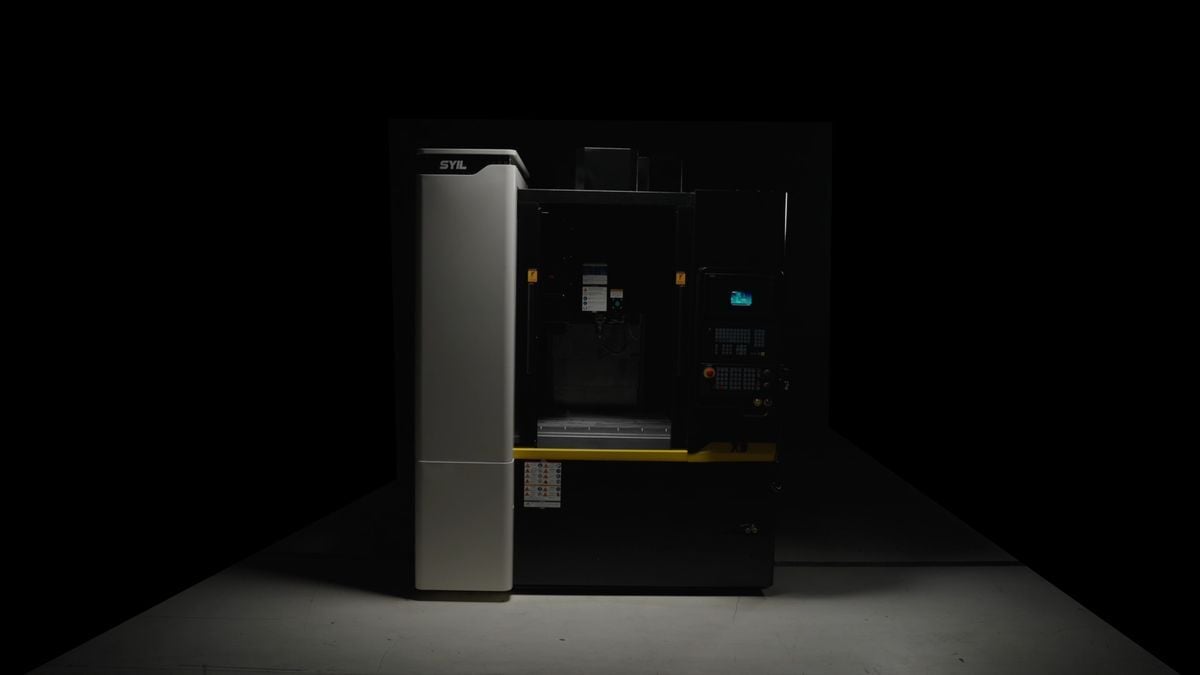

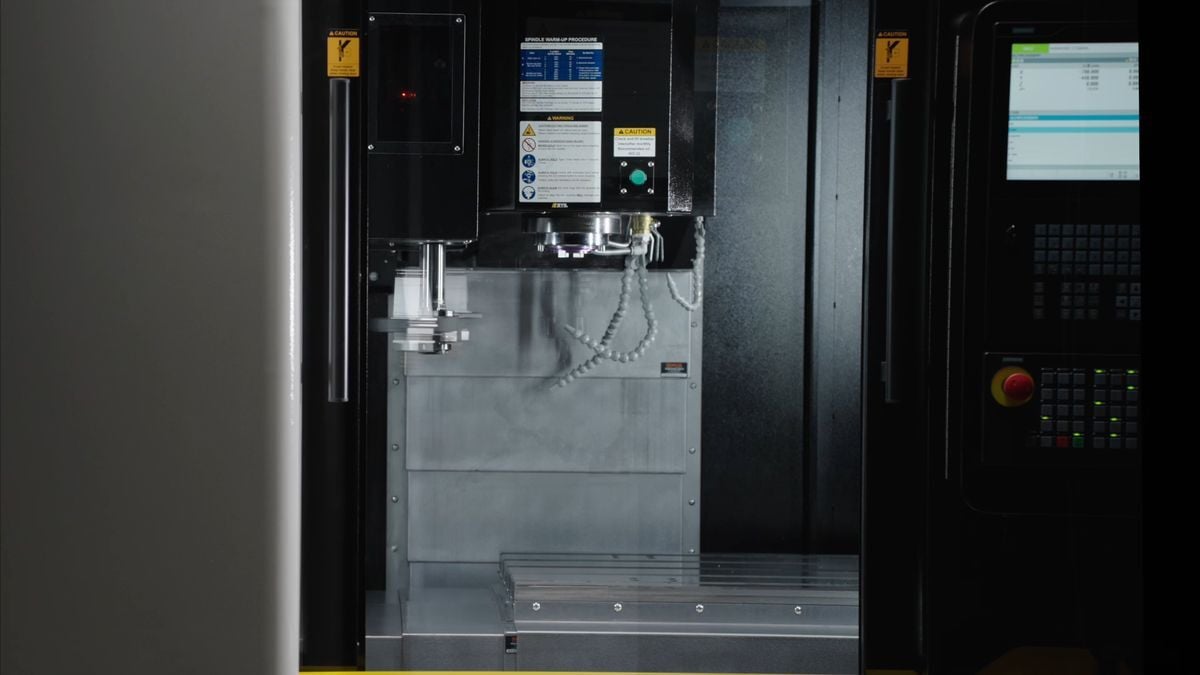

Travel
Longitudinal Travel X
760 mm
Cross Travel Y
500 mm
Headstock Travel Z
500 mm
Distance between spindle end and tabletop
100-600 mm
Distance between spindle and column surface
530 mm

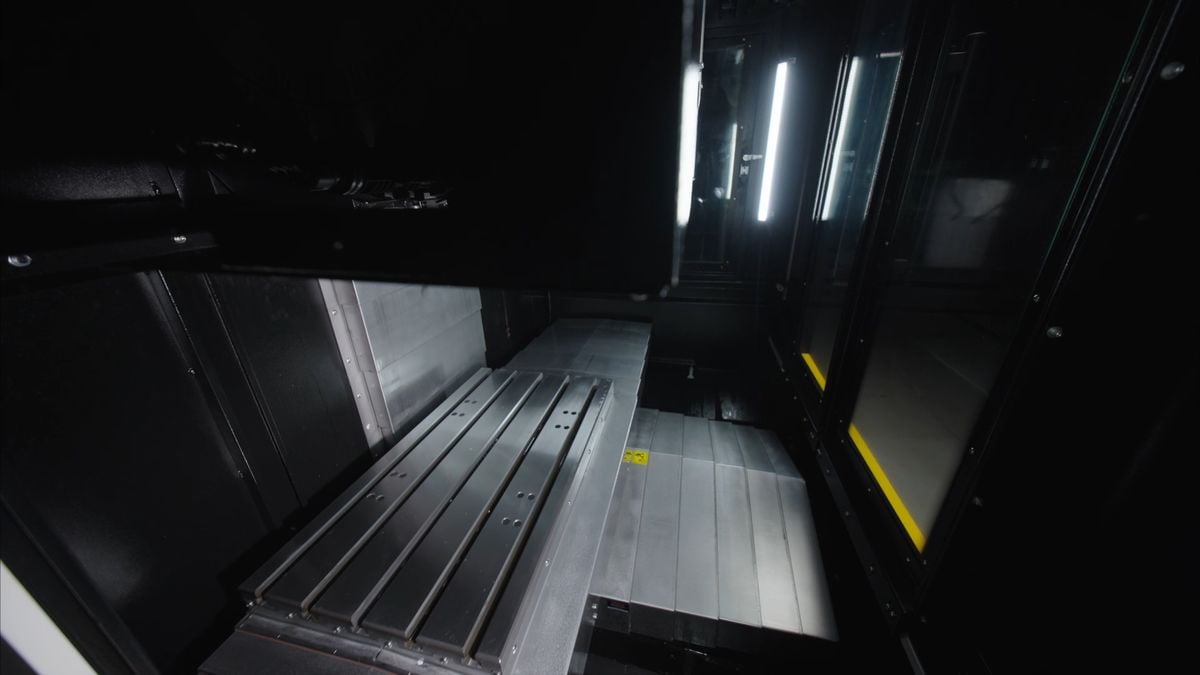

Table
Working surface
860×500 mm
T-Slots (Number x Size x Distance)
5×18×100 mm
Max. table load
500 kg

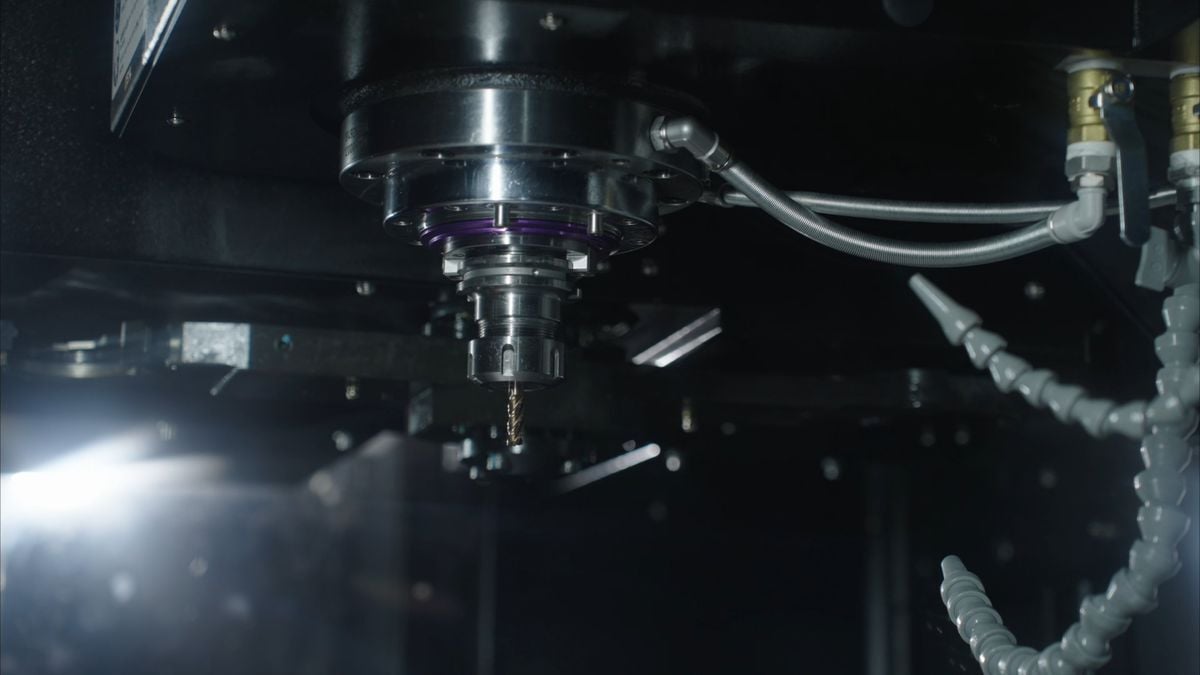

Spindle
Spindle Nose
BT40
Spindle Speeds
10,000 rpm (12,000 rpm optional)
Mechanism of Transmission
Belt/Direct type

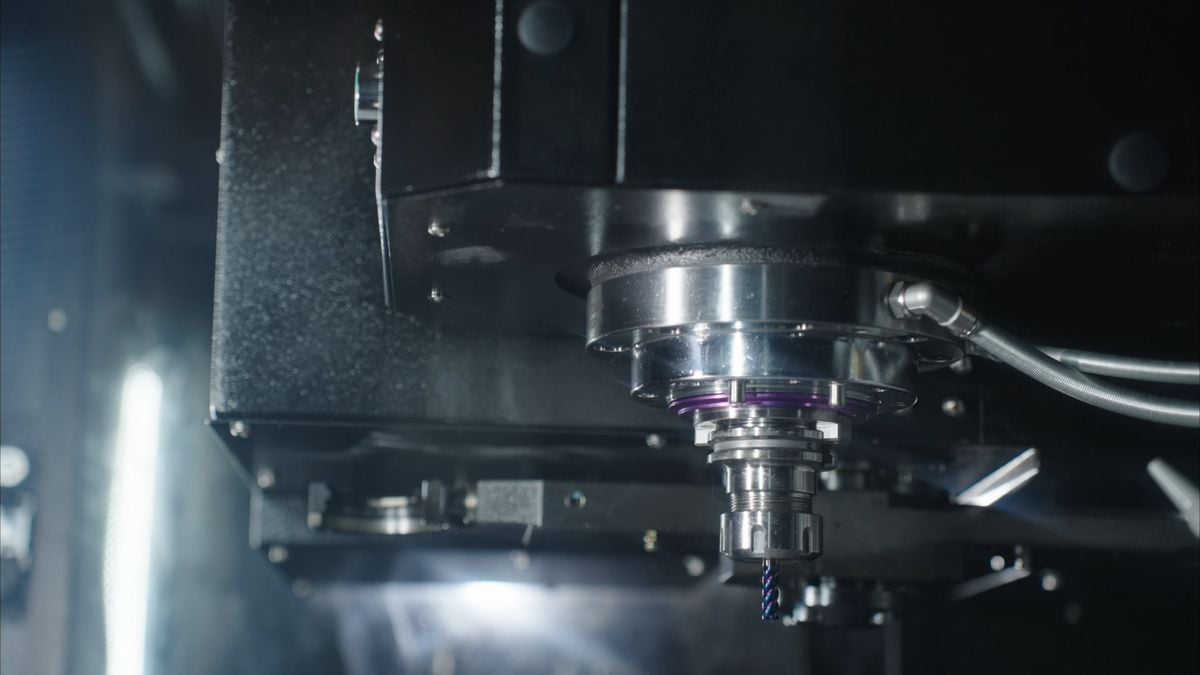

Feed
Cutting Feed
10,000 mm/min
Rapid Traverse
30,000 mm/min

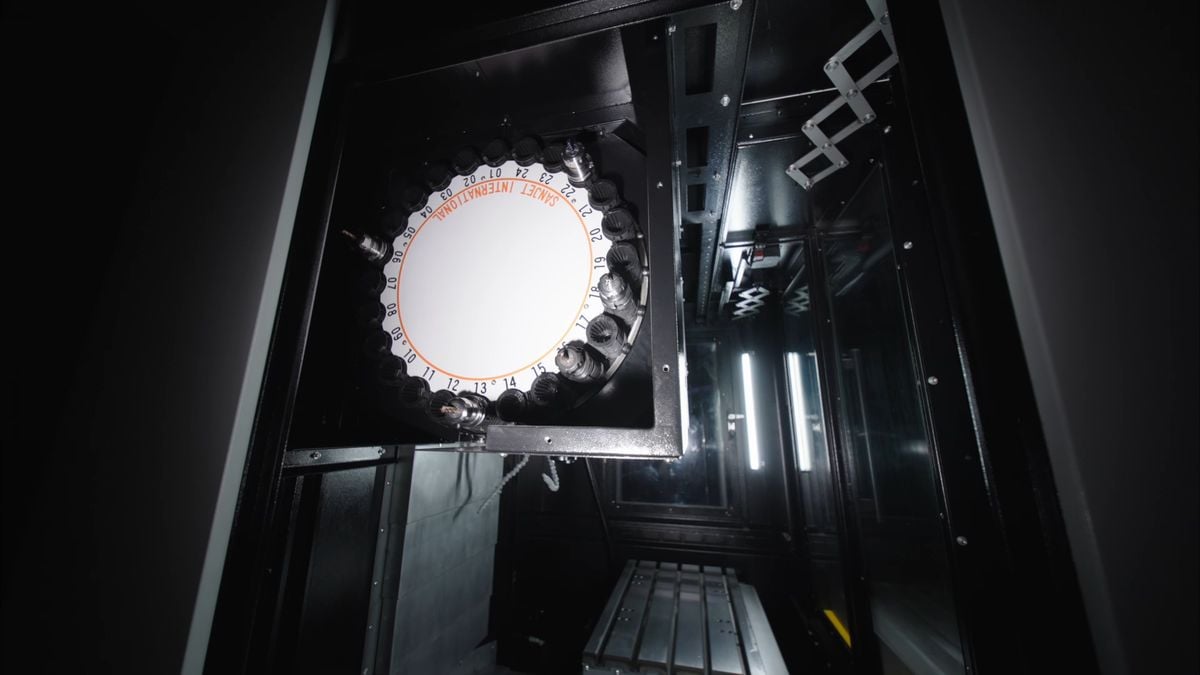

Auto Tool Changer
Tool Holder
Arm type
Tool Storage Capacity
24 pcs
Max. Tool Diameter
125 mm
Max. Tool Length
240 mm
Max. Tool Weight
7 kg
Tool to Tool
2.0 s

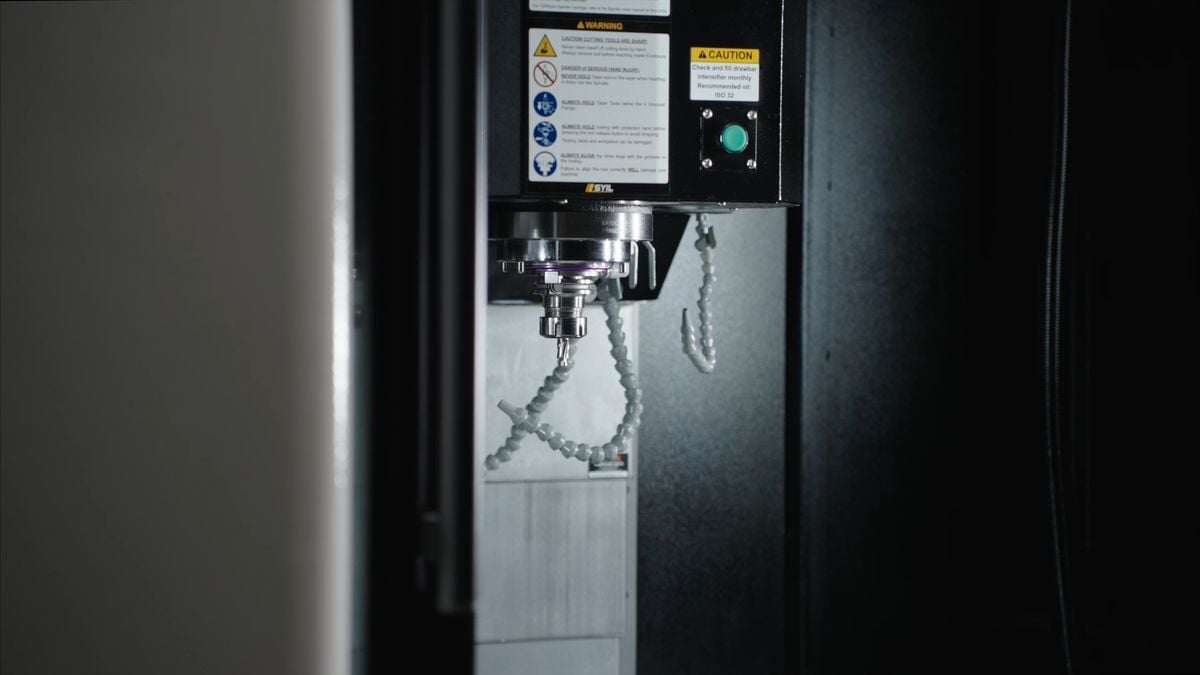

Motors
Spindle motor output
11/17 kW
Drive motors X, Y, Z Axis
3.9/3.9/5.9 kW
General
Floor space (L×W×H)
1850×2245×2800 mm
Weight
6000 kg
SYIL X9 Core Features
Excellent Machining Capabilities. Handling a Full Range of Operations.

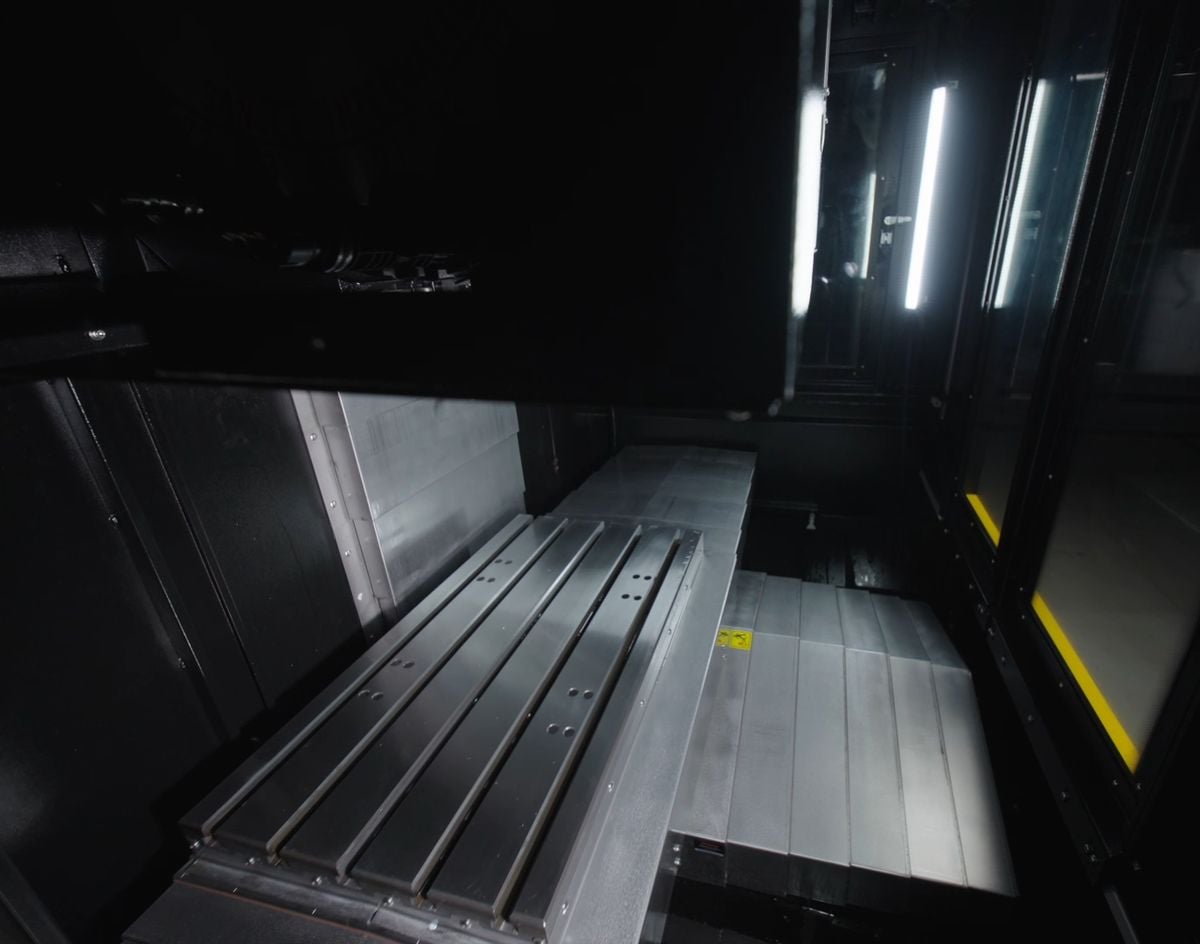

THK

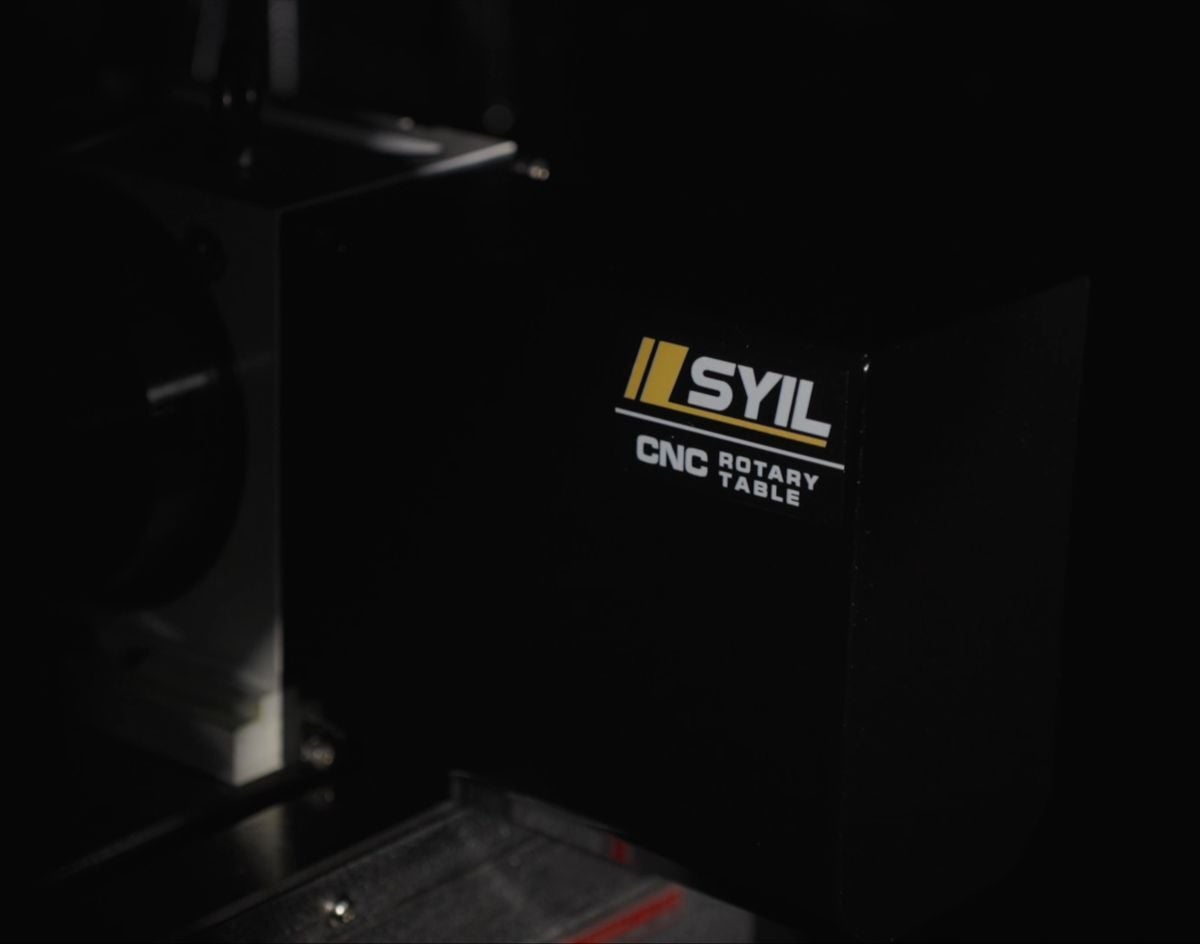

4th axis

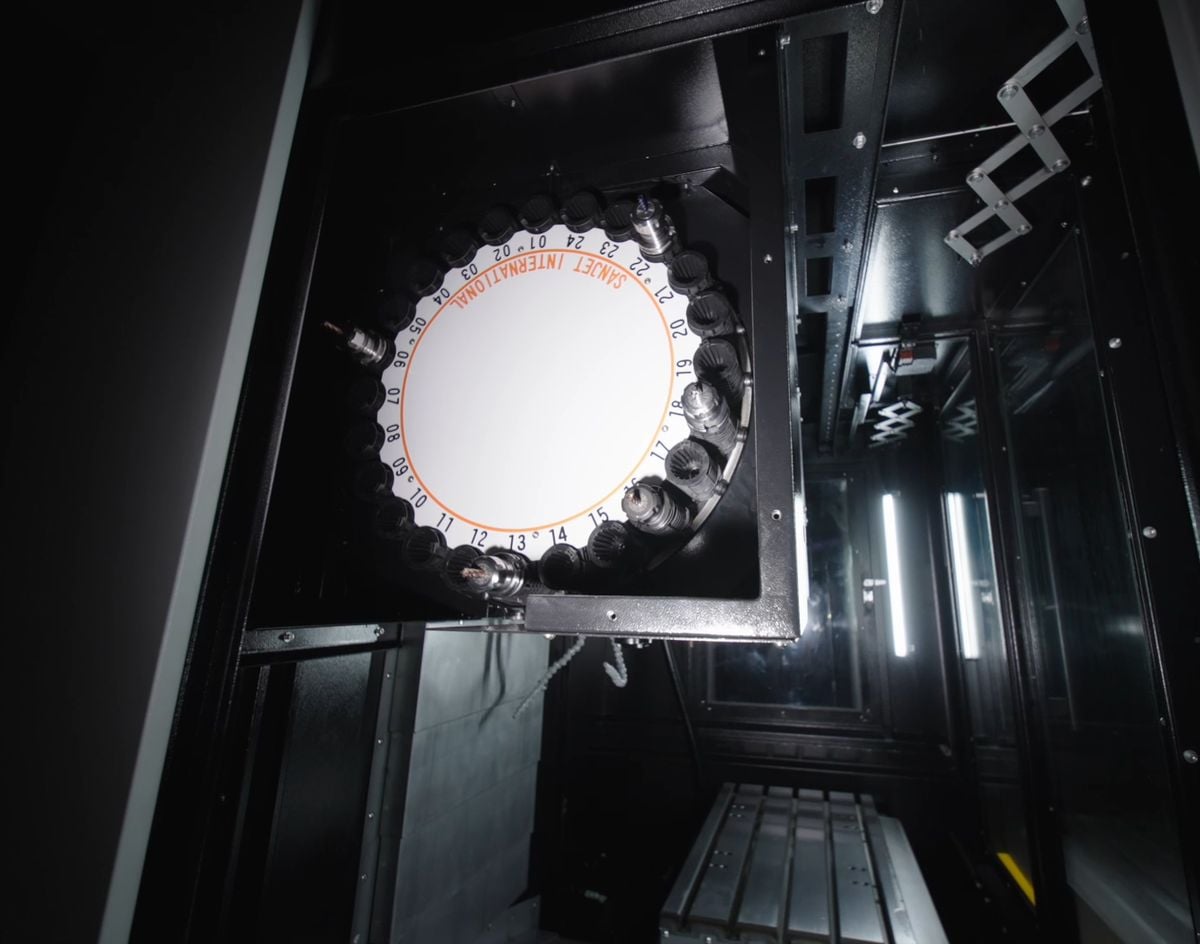

High-speed Servo Tool Changer
SYIL X9 Options

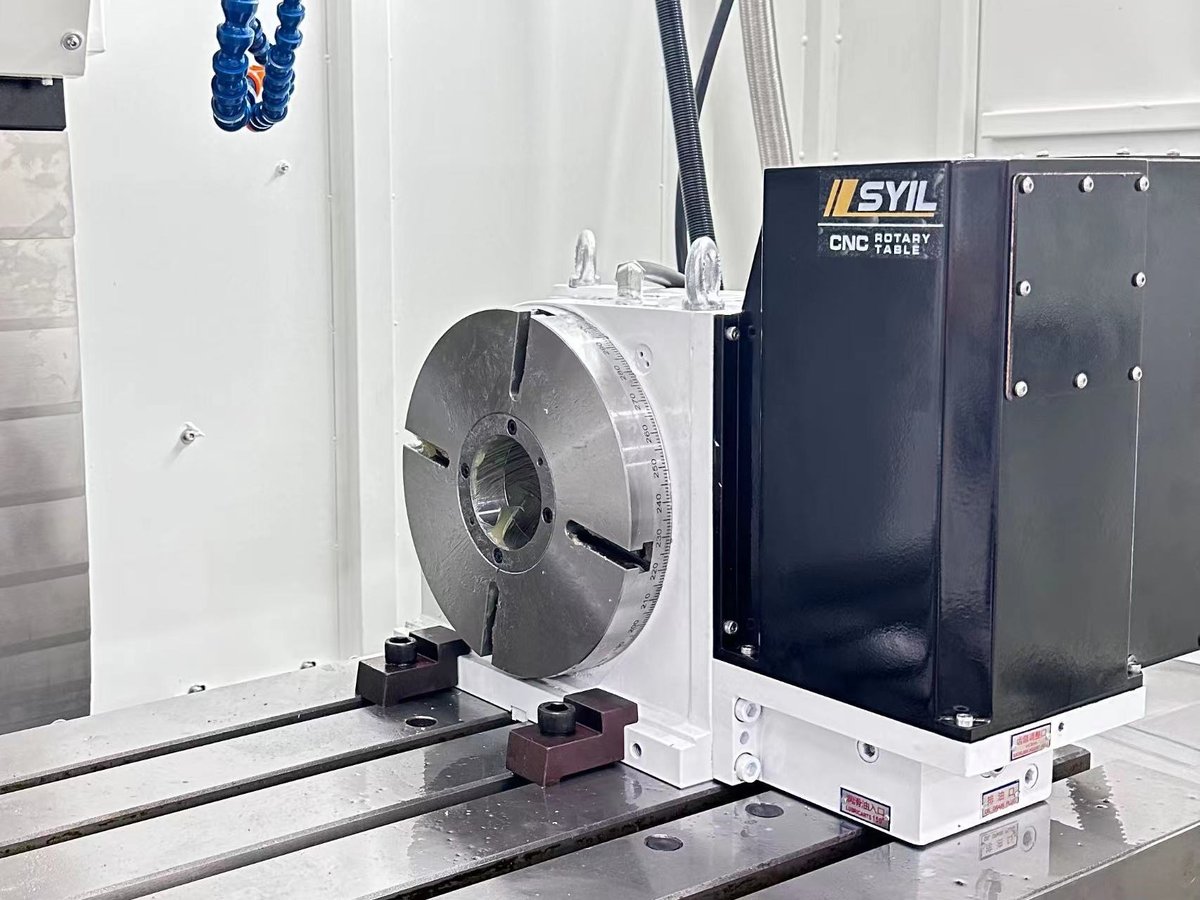

4th axis 255 mm.
for 255 mm NC rotary table.

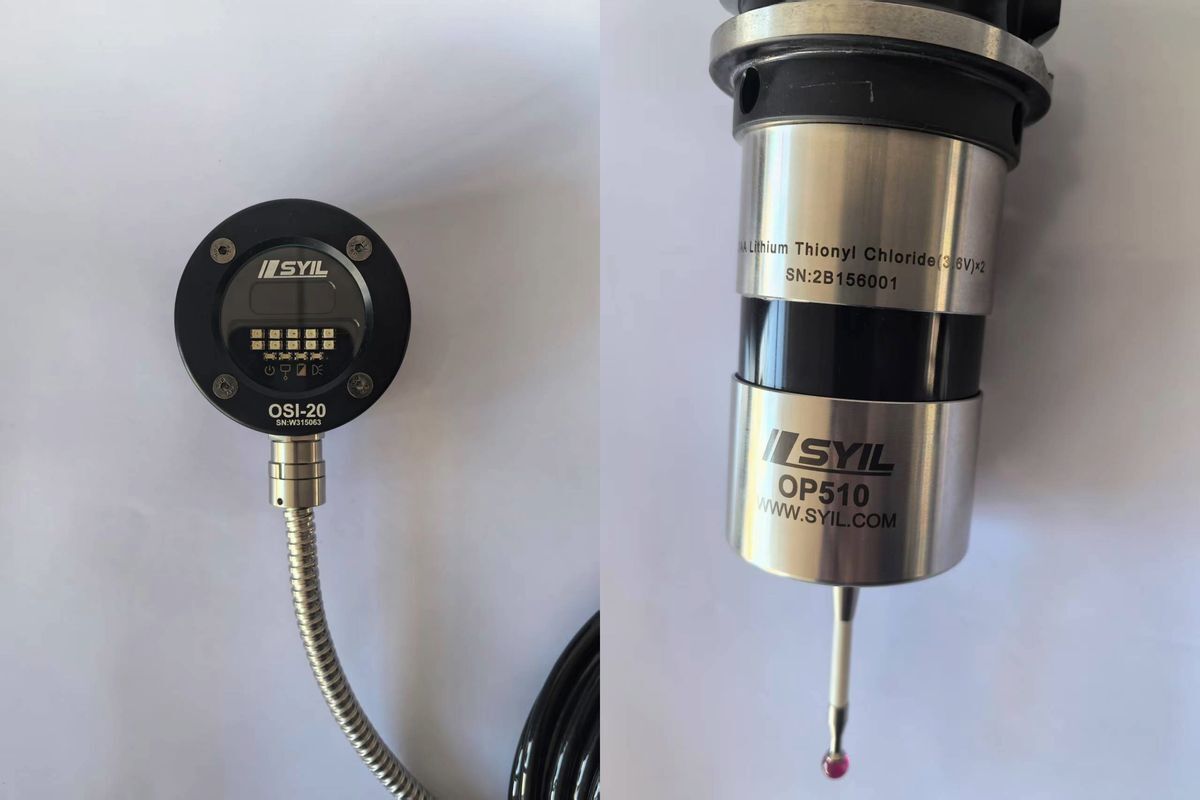

Wireless type.

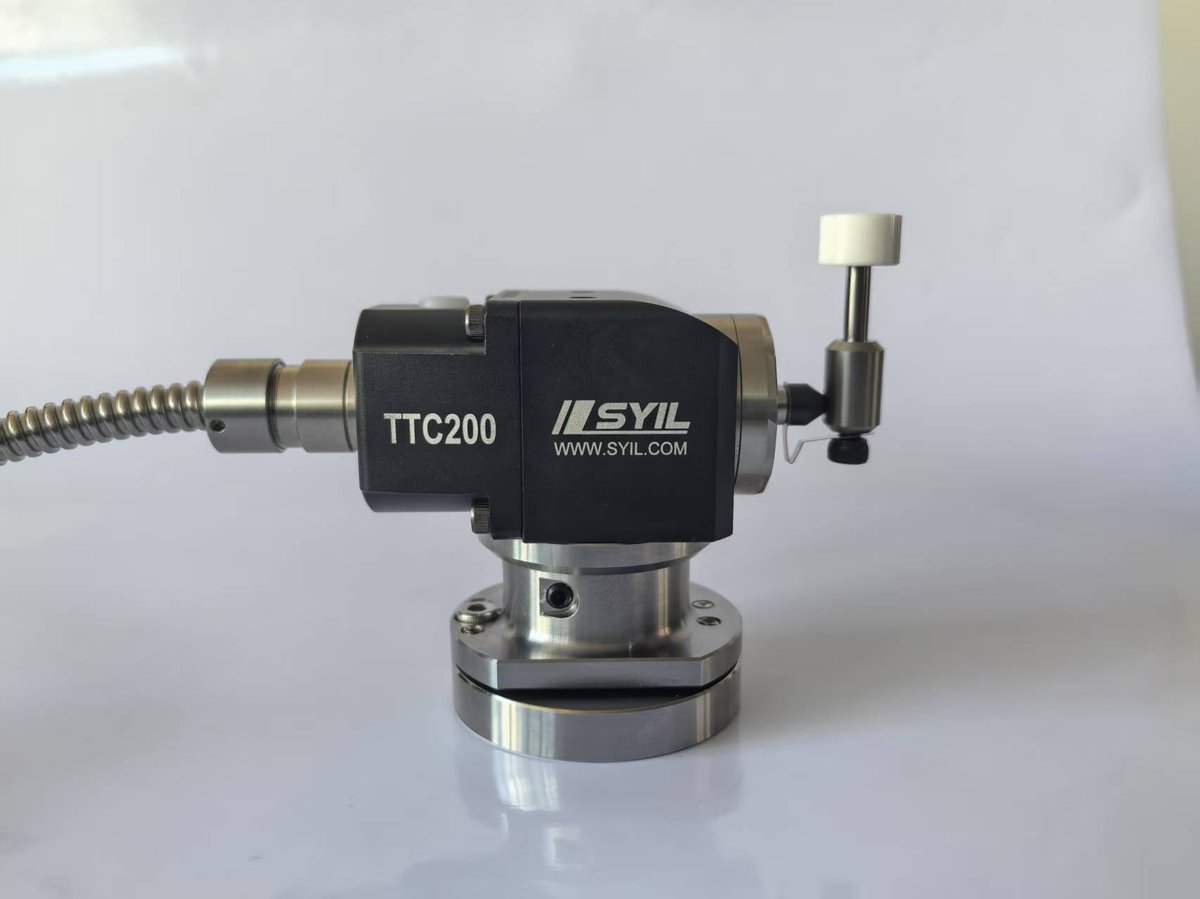

Cable type TTC200.

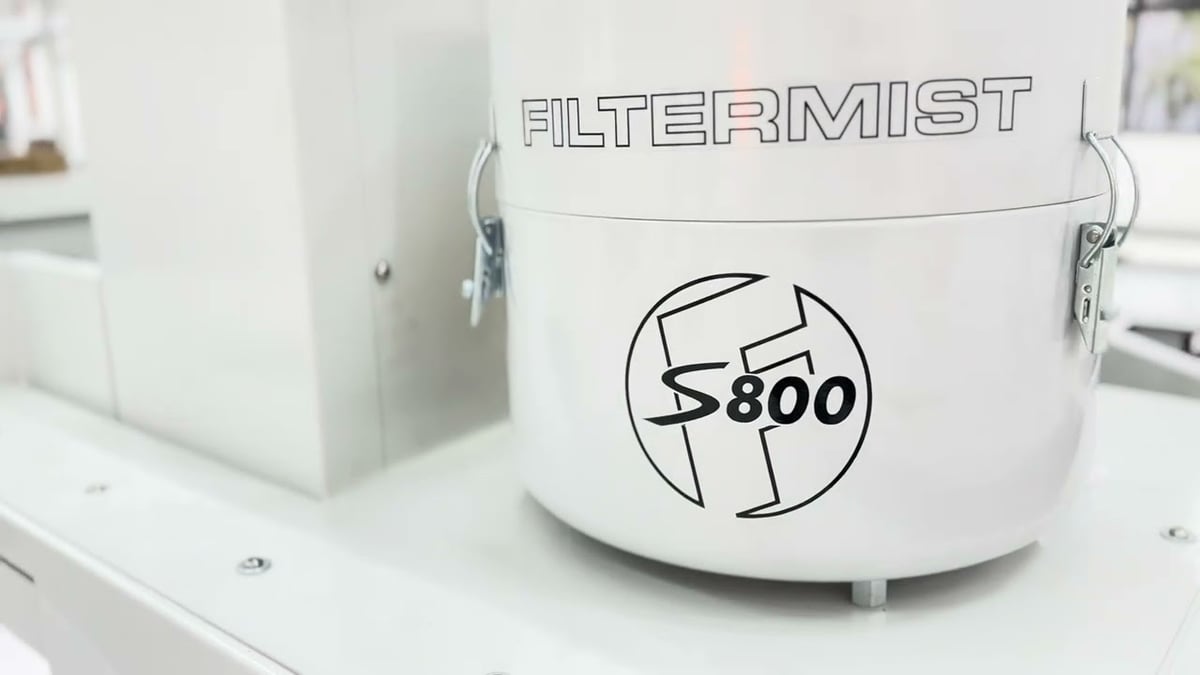

S800.

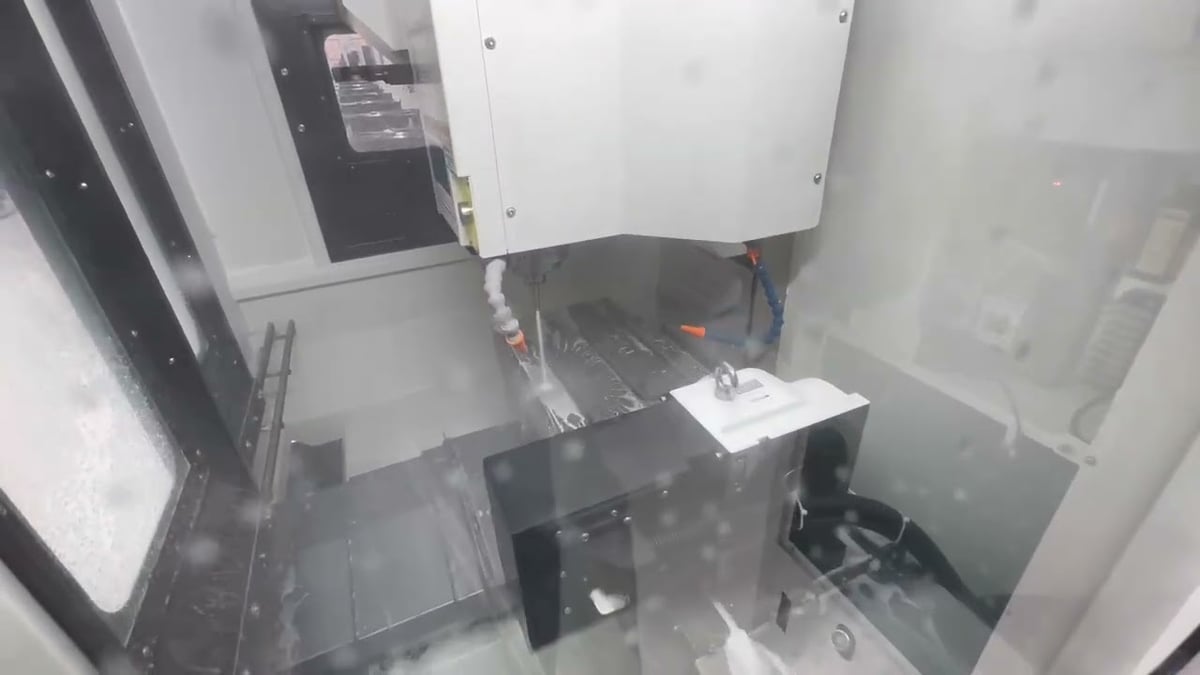

CTS 20 bar.
Technical Specifications
X5
X7
X9
X11
Table
Table size (mm)
560×260
700×300
860×500
1050×550
Table load (kg)
150
150
500
600
Table surface (number×size×distance in mm)
T-slots 3×14×80
T-slots 3×14×100
T-slots 5×18×100
T-slots 5×18×90
Travel distances
X-axis (mm)
300
400
760
1000
Y-axis (mm)
260
300
500
500
Z-axis (mm)
300
380
500
500
Distance from spindle nose to table top
150-450
150-530
100-600
110-610
Distance between spindle and column surface
330
358
530
650
Spindle
Spindle taper
BT30
BT30
BT40
BT40
Power-drive
Direct
Belt
Belt
Belt
Max. spindle speed (rpm)
20,000
12,000
10,000 (12,000 optional)
10,000
Feed
Rapid traverse (mm / min)
30,000
30,000
30,000
30,000
Cutting feed (mm / min)
10,000
10,000
10,000
10,000
Automatic tool changer
Type
Wheel
Arm
Arm
Arm
Tool holder
BT30
BT30
BT40
BT40
Tool storage capacity
16
16
24
24
Max. tool diameter (mm)
63
63
125
125
Max. tool length (mm)
200
200
240
300
Max. tool weight (kg)
3
3
7
7
Tool to tool (s)
1
1.5
2
2.5
Other data
Machine weight (kg)
2180
2200
5000
7000
Machine dimensions L x W x H (mm)
Footprint including coolant tank and controller
Footprint including coolant tank and controller
2020×1000×2360
1800×1600×2250
1850×2245×2800
2600×2150×2500
Min/max air pressure (MPa (psi))
0.4/0.8 (60/120)
0.4/0.8 (60/120)
0.4/0.8 (60/120)
0.4/0.8 (60/120)
Coolant tank capacity (Liters)
80
80
130
240
